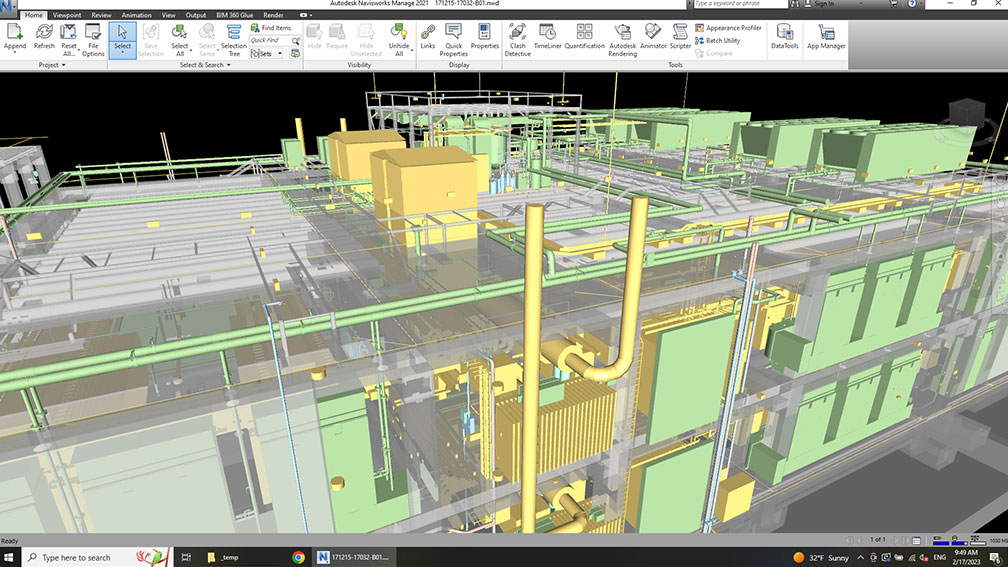

What Is Clash Detection?
Clash Detection is a process for identifying and analyzing conflicts between different project models in a digital environment. It checks compatibility between architectural, structural, building systems, equipment, and other building elements before construction begins.
The process allows spatial inconsistencies to be identified during the design stage, when changes can be addressed more efficiently than on the construction site.
What Does Clash Detection Include?
Depending on the type and complexity of the project, Clash Detection may include:
-
comparison of architectural, structural, and engineering BIM models;
-
identification of physical clashes between project elements;
-
detection of spatial inconsistencies;
-
review of interactions between building systems and structures;
-
analysis of conflicts between equipment, routes, and architectural elements;
-
review of potential construction difficulties;
-
use of the findings to refine design solutions.
Checks are carried out using current BIM models so that identified issues can be addressed before subsequent project stages.
How Is Clash Detection Used in the Design Process?
Clash Detection is directly connected with BIM modeling and coordination between architectural, structural, and engineering disciplines. Comparing the models early allows technical and spatial conflicts to be identified before construction begins.
For projects with complex building systems, the process supports engineering design by allowing routes, equipment, and structural elements to be reviewed within the shared digital environment.
The results may also support design process management, while updated project information can provide a basis for further BIM applications such as 4D and 5D BIM. The current site uses these exact related service areas and URLs.
What Does Clash Detection Provide for the Investor?
Early identification of conflicts reduces the risk of construction-stage changes, delays, additional costs, and unclear responsibilities between project participants. It also supports clearer communication between designers, consultants, contractors, and investors.
For projects involving existing buildings or facilities, Clash Detection may be used together with Reality Capture and Scan-to-BIM, providing a stronger digital basis for comparing project information with existing conditions.
Need Clash Detection for a BIM Project?
Contact us to discuss the available models, design disciplines, and required scope of the Clash Detection process.
